Steel Cut Wire Shot
- Blasting techniques include shot blasting, grit blasting, die casting cleaning, casting cleaning, forging cleaning, and forgings. Shot blast cleaning refers to the process of cleaning cut wire using the shot.
- Blasting steel plate and steel shot with cut wire shot media.
- Finish cut wire is finished by steel shot peening, steel sand blasting, and boat deck shot peening.
- Sand blasting technique for cutting wire.
| Customized Packaging | Yes |
| Payment Mode | Cash, Cheque, DD, Credit Card, 100% T/T, NEFT, RTGS, UPI, IMPS |
| Shipment Mode | By Air, By Road, By Cargo |
| Delivery Time | 1-2 weeks from the date of confirmation of Purchase Order and Advance. |

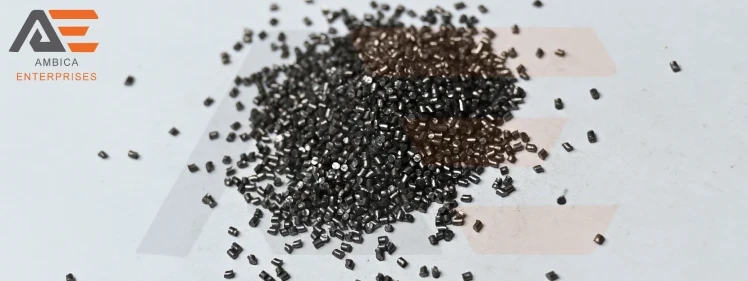

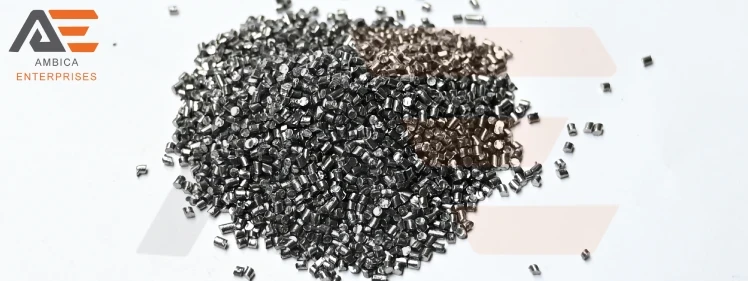

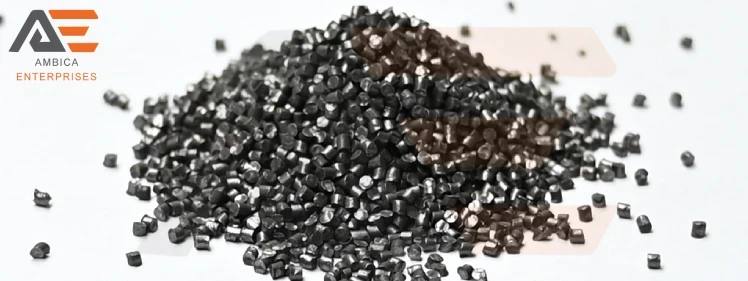

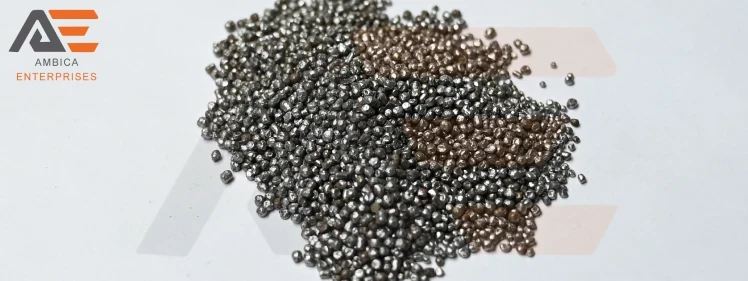

Steel Cut Wire Shots
Steel cut wire shots are used for surface preparation in the blasting process. To perform the blasting operation wheel blast and compressed air process is used.
In the compressed air blasting process which size of steel cut wire shot size is steel cut wire shot is used for surface preparation in the shot blasting machine process. To perform the blasting operation wheel blast and compressed air process is used. In the compressed air blasting process which size of steel cut wire shots size is used depends upon nozzle size and compressed air availability. When the cut wire shot is used in the sand blasting machine process dust formation is very less and these shot can be recycled much time. When reuse cut wire shots only change happened in shape and size.
Carbon Steel Cut Wire Shot
Carbon Steel Cut Wire Shot is a popular blasting media to use in the blasting process. A steel cut wire shot is used for the blasting process where a higher level of blasting media harness is desirable. And also used on the component having a high level of inherent hardness.
Carbon steel cut wire shots are widely utilized in the foundry, forging, and automotive industries for cleaning, deburring, descaling, shot peening, and surface improvement. steel cut wire shots are available in three different hardness: 45-50 HRC, 50-55 HRC, and 55-60 HRC with sizes starting from 0.40mm to 2.50mm
Chemical Composition
| P | max.0.04% |
| Mn | 0.30-1.20% |
| S | max.0.05% |
| Si | 0.10-0.35% |
Physical Properties
| Hardness Standard | 40-52 HRC (400–550 HV1) |
| High | 55–62 HRC (600–750 HV1) |
| Sizes | 0.3mm to 2.8mm |
| Micro Structure | Tempered Martensite |
| Porosity | NIL |
| Blow Holes and Tails | NIL |
| Fine Grain Size | Cut wire shot has a fine grain size it does not break in the blasting process but has a change in shape and size while reusing. |
| Density | min. 7.8 g/cm³ |
Higher-Manganese Low Carbon Wire Shot
When cut wire shots are used for the blasting process it produces a good surface finish and plays a significant role in the production economy. A component having a hardness of 40 HRC or less than low-hardness High-Manganese steel cut wire shot is most preferable to use. The use of high manganese low carbon wire shot shows low wear and tear in the sand blasting nozzle. It also increases sand blasting nozzle life.
Steel Cut Wire Manufacturers in India
We are the Leading Manufacturer of abrasive media, Steel Shots, SS Shot, Steel Grit, Garnet sand, Aluminum oxide, Quartz shot, glass beads blasting for stainless steel, etc, and a qualitative range of industrial steel abrasive products.
To enable us to quote for your requirement, kindly give us the following info –
- Â Â Particle size required (You may choose from above or give your own range).
- Â Â Packing required.
- Â Â Quantity required with a delivery schedule.
- Â Â Destination port.
- Â Â Payment terms.
- Â Â Discharge rate at the destination, if in break-bulk.
- Â Â Any other point which may impact the quote.
Steel shots is a type of ballistic material used as a projectile in abrasive blast cleaning and shot peening, as well as shotguns and pellet guns. Steel shots in India is a metallic pellet made of an iron-carbon alloy that is bluish-gray in color. They are finished in a variety of ways, allowing for a wide range of corrosion resistance levels.
The main shooting precaution with steel shot is to avoid shooting at a hard surface because of the risk of ricochet. When reloading with steel shot, never substitute lead for steel. Steel shot generates higher pressures, so it must be loaded with steel shot-specific powders and wads.
S170 is a steel shot that is used as a raw material in the production of various industrial abrasives. The hardness of S170 steel shot is greater than 45 HRC, and the density is 7.8g/cm3. It is spherical, without cracks or crevices, contains no impurities, is tough, and has a high cleaning power.
Steel Shots uses in Industry are below: Automotive industry, sandblasters/painters, consumer goods manufacturing, container manufacturing/repair, Cutting granite/stone, shipbuilding and repair, oil and gas pipelines, plant maintenance and metal working.
Steel shot is widely used to remove oxidation and rust from steel workpieces prior to painting, and centrifugal photo blasting equipment is frequently used in this process. The steel shot's round ball shape and low hardness cause little wear on the equipment. Steel shot is also commonly used for casting sand cleaning. Because of its durability, steel shot is the best abrasive for surface cleaning when used with the proper equipment.
The HS code of Steel Shot in India is 72051021.
Steel Shots sizes in mm are 0.2mm to 1.5 mm and the steel shots grade is S-070(0.20mm), S-110(0.30mm), S-170(0.42mm), S-230(0.60mm), S-280(0.71mm), S-330(0.84mm), S-390(1.00mm), S-460(1.19mm), S-550(1.41mm).
Steel Shot price is ₹ 65 - 85 /Kg. We are one of the best steel shot manufacturer & Steel shot supplier. We are also provide all kind of abrasive media alike steel grit, copper slag, abrasive garnet, high steel shot, and low steel shots in India.
