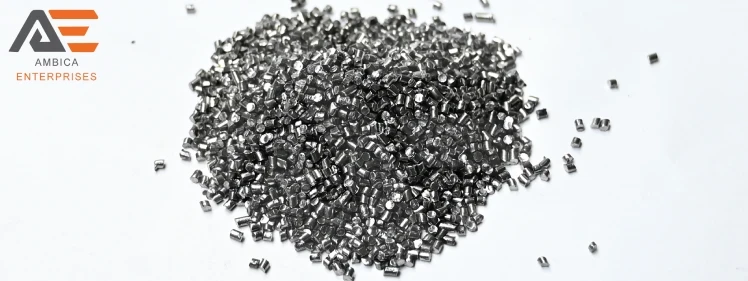

Stainless Steel Cut Wire Shot
- It is widely used for cleaning & deburring.
- For surface improvement in the abrasive blasting machine operation. In the shot blasting operation.
- Shot peening of aluminum, non-ferrous metals, zinc alloys, stainless steel precision, etc.
- For special sand castings.
| Customized Packaging | Yes |
| Payment Mode | Cash Cheque DD Credit Card |
| Shipment Mode | By Air By Road By Cargo |
| Delivery Time | 1-2 weeks from the date of confirmation of Purchase Order and Advance. |
Introduction of Stainless Steel Cut Wire Shot
Stainless steel cut wire shot shall include the lowest hardness of 466 KHN (45 HRC). The hardness shall be specified per ASTM E 384 & utilizing a 500 gf load for sizes CW-28 and finer or a 1000 gf load for sizes more extensive than CW-28. Additional microhardness test procedures may be employed whereas a reliable hardness conversion can be acquired by calibrating different machines against available standards. We also offer all types of steel shot and steel grit in India at a reasonable price.
Stainless steel cut wire shots are ought to for cleaning & shot peening machine procedures wherever iron pollution couldn't be accepted. Stainless steel cut wire is created from kind sus304/430/202 wire fabricated to exacting specifications. Stainless steel wire is cut to exact length while its diameter delivers a solid, enduring element of shot. Stainless steel cut wire is generally in either cylindrical or rounded forms. A rounded stainless cut wire is known in G1, G2 & G3 conditioned forms.
We specialize in stainless steel cut wire shot, steel cut wire shot is used in essential applications in abrasive blasting machine operation for stainless steel, titanium, aluminum, & additional non-metal surfaces.
Even though steel stainless cut wire shot is favorably broad & ideally suited to wheel blasting (airless shot blasting machines) & pressure blasting cabinets, lesser diameters might be employed in suction air blasting utilization. Dissimilar to cast steel & carbon cut wire shot, stainless steel cut wire shot cylindrical doesn't instruct iron pollution into nonferrous castings & scheme consequences.
Stainless steel cut wire shots are engaged for shot blasting machine procedure on asset castings, aluminum dies castings, brass segments & additional metals on whichever carbon pollution is unhealthy. Cut wire shots constructed from carbon steel, stainless steel, copper, aluminum & zinc wires in each of shapes & sizes. We suggest cut wire shots coordinating by SAE J441, VDFI 8001 & IS 5873 grade standards.
Stainless Steel Cut Wire Shot Shapes
- As-cut: Cylindrical
- Normal: Corners Pre Rounded
- Conditioned: Nearly Spherical
- Semi-conditioned: not spherical
Stainless Steel Cut Wire Shot Size
| SAE | Equivalent Size in mm | Cut Wire Shot range in mm |
| S-170 | 0.4 | 0.3 -0.5 |
| S-190 | 0.5 | 0.4 -0.60 |
| S-230 | 0.6 | 0.5- 0.7 |
| S-280 | 0.7 | 0.6-0.8 |
| S-280 | 0.8 | 0.7-0.9 |
| S-360 | 0.9 | 0.8-1.1 |
| S-390 | 1 | 0.8- 1.2 |
| S-460 | 1.2 | 1-1.4 |
| S-550 | 1.4 | 1.2-1.6 |
| S-660 | 1.6 | 1.4-1.8 |
Types of Stainless Cut Wire Shot
Next, we describe the types of stainless cut wire shots these are following.
As Cut (Cylindrical) Stainless Cut Wire Shot
Sand blasting machine operation, cleaning, deburring descaling, exterior texture of non-iron parts, preliminary to stainless steel castings, stainless steel asset castings, welded elements & building texturing stainless steel wire rods in order to dimple exterior prior to cold sketch bronze & brass parts, AI-Forgings, AI-Castings, special sand castings. Provisional erosion safety of superheated originated & descaled HS steel elements.
Conditioned (Rounded) Stainless Cut Wire Shot
Rounded stainless cut wire shot is used Shot peening machine operation of segments certain are revealed to remains (impinged shot) certain might drive corrosion for these sector stainless steel cut wire shot are used to remove corrosion from stainless steel springs, stainless steel extrusion screws, elements for paper mills, offshore drilling rods for crude oil investigation, and ship industries in Navy.
Chemical Composition
| Grade | Carbon (Max) | Manganese(MIN-Max) | Chromium (Min-Max) | Nickle | Silicon(max) | Phosphorous(max) | Sulfur(max) |
| 304 | 0.08 | 2 | 18-20 | 8 | 1 | 0.075 | 0.03 |
| 302 | 0.15 | 2 | 17-19 | 8 | 1 | 0.045 | 0.03 |
| 430 | 0.03 | 1 | 16-18 | Nil | 1 | 0.04 | 0.03 |
Superior overall performance as a consequence of :
- Heightened durability: Specially chosen raw material.
- Lower dust development.
- High peening efficiency: In kindnesses of transferred kinetic energy based on consistent core-hardness & core ductility & superior surface hardness & roughness.
- Size & shape (Rounded shape) consistency.
Benefits of Stainless Steel Cut Wire Shot
- Delivers especially stunning exteriors.
- More extended life than cast abrasives.
- No excavations, splits, or twins.
- Carries a larger size and form than cast abrasives.
- A stainless cut wire shot delivers a dust-free surface.
- Unrestricted cylindrical and conditioned.
- There is no scale pollution.
- Assembles shorter dust than the released effects.
Advantages of Stainless Steel Cut Wire Shot
- Most economical & decreasing consumption.
- Consumption released shot is 3-4 times undersized.
- There is no visible dust.
- Quick cleaning.
- Non-polluting.
- Compatibility in hardness.
- The grain size has been stabilized.
- Extended the life of blasted components.
Stainless Cut Wire Shot Uses
- Its extended life indicates more nominal waste.
Cylindrical stainless steel shot is employed in blasting carbon steel, alloy steel, stainless steel, titanium, brass & aluminum.
- It’s recyclable.
More nominal garbage equals big expense conservancies. This lowers load & material prices on infiltrating side since smaller media is needed to substitute expended material. Stainless steel trash may likewise be reclaimed for future usefulness & dumped at a heightened value.
- It’s non-combustible.
Wherever dust collector bursts are a situation, stainless steel cut wire cylindrical is preferably blasting abrasive since it emits the smallest quantity of dust & is incombustible. Carbon steel dust is widely regarded as flammable.
- It performs well as a plating filler.
Stainless steel cut wire shot cylindrical employ accompanied by plating stuffing in metal plating baths. Stainless steel shots could be deprived of their coating & reused.
Stainless Steel Cut Wire Shot Manufacturer
We are the foremost Stainless steel cut wire shot manufacturer in India. Ambica Enterprises, as a quality-conscious company, we are committed to providing a superior assortment of stainless steel cut wire shots. We ensure our customers that these items will be delivered on time and at a reasonable price. We also supply all types of abrasive media such as steel shot, cut wire shot, steel grit, cast steel grit, tungsten carbide grit, PS ball, copper slag, garnet sand, and chilled iron grit with high-grade.
Garnet sand may be a good abrasive, and a standard replacement for silica sand in <strong>sand blasting</strong>. The garnet, because it is mined and picked up, is crushed to finer grains; all pieces which are larger than 60 mesh (250 micrometers) are normally used for sand blasting.
Steel shot is harder than lead and features a lower density. To catch up on this you ought to move up 1 or 2 shot sizes and initially shoot birds at closer range – don't alter your shooting technique. As steel shot is harder than lead it is often driven faster without deforming the pellets - keeping tighter patterns.
Steel Grit is offered in a form of shapes and sizes which will admit administering a variety of blast profiles for obtaining different results. This sort of grit is angular in nature the way it's been created. This grit is good for helping to get rid of the contaminants from the surface of varied products and it also creates a final profile for the new coating to stick to.
Copper slag may be a by-product obtained during smelting and refining of copper. The waste copper slag is often used as abrasive tools, construction, and ballast.
The main use of aluminum oxide is in refractories, ceramics, polishing, and abrasive purposes. Large contents of aluminum hydroxide, from which alumina comes, is used in the production of zeolites, coating titania pigments, and as a fireplace retardant/smoke suppressant.
